Water System Part 2

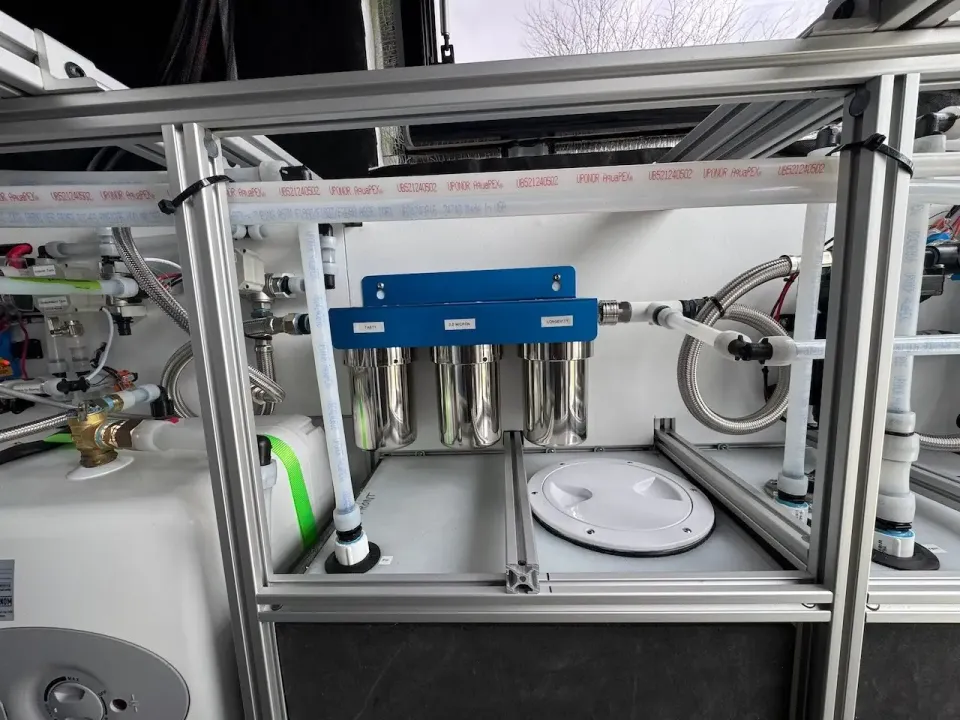

Each side of the BluTech Trio water filter above has stainless steel quick disconnects - and the flex hose gives me enough leeway to be able to yank the entire filter assembly out and replace it with a 'straight pipe'. Will make replacing filters a lot easier - and if it starts leaking during a trip, could bypass it this way. Also useful in freezing weather if we want to leave the van unheated for a week or two, but just grab the filter assembly into the house to avoid all the complexity with winterizing it.

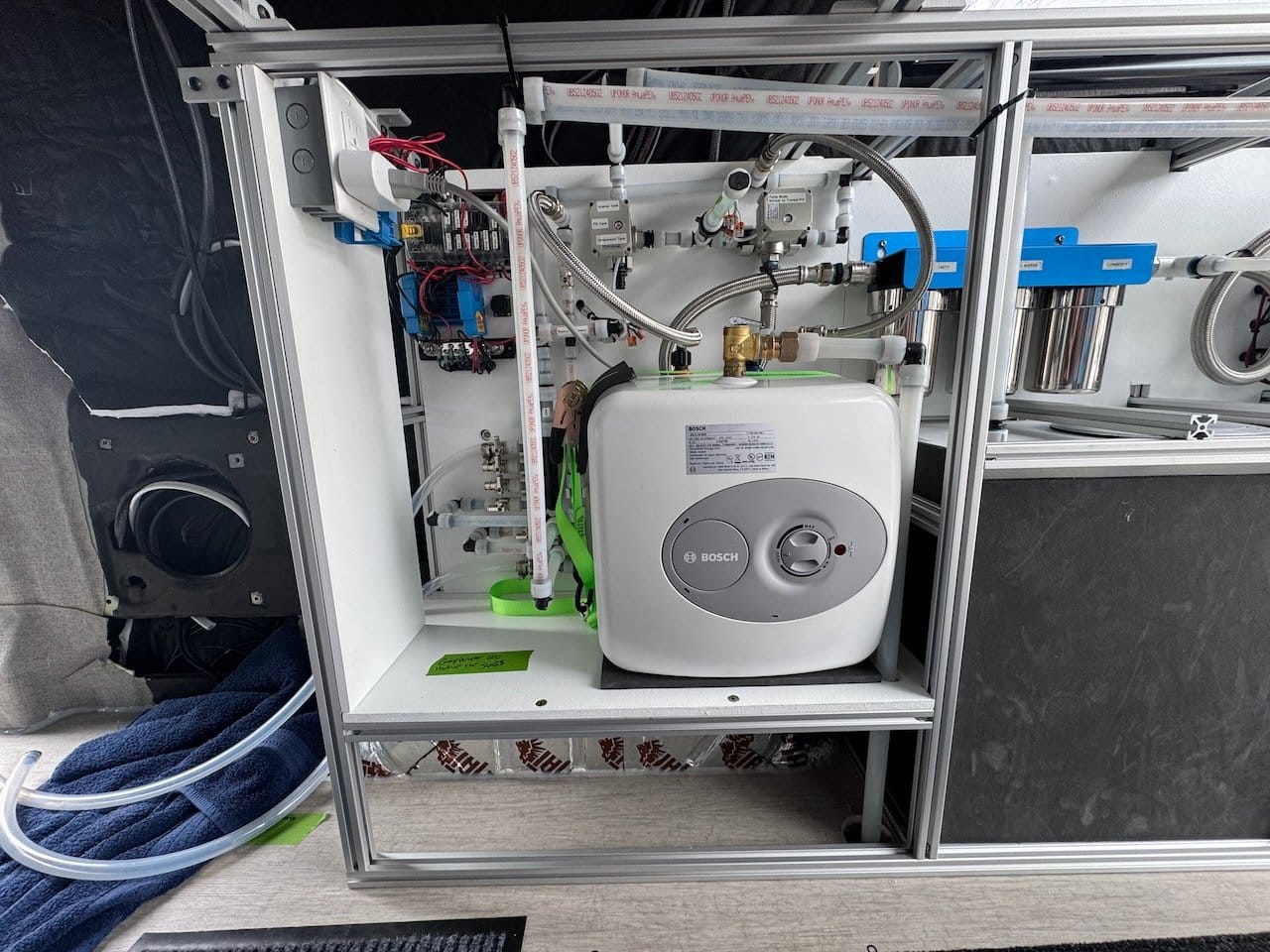

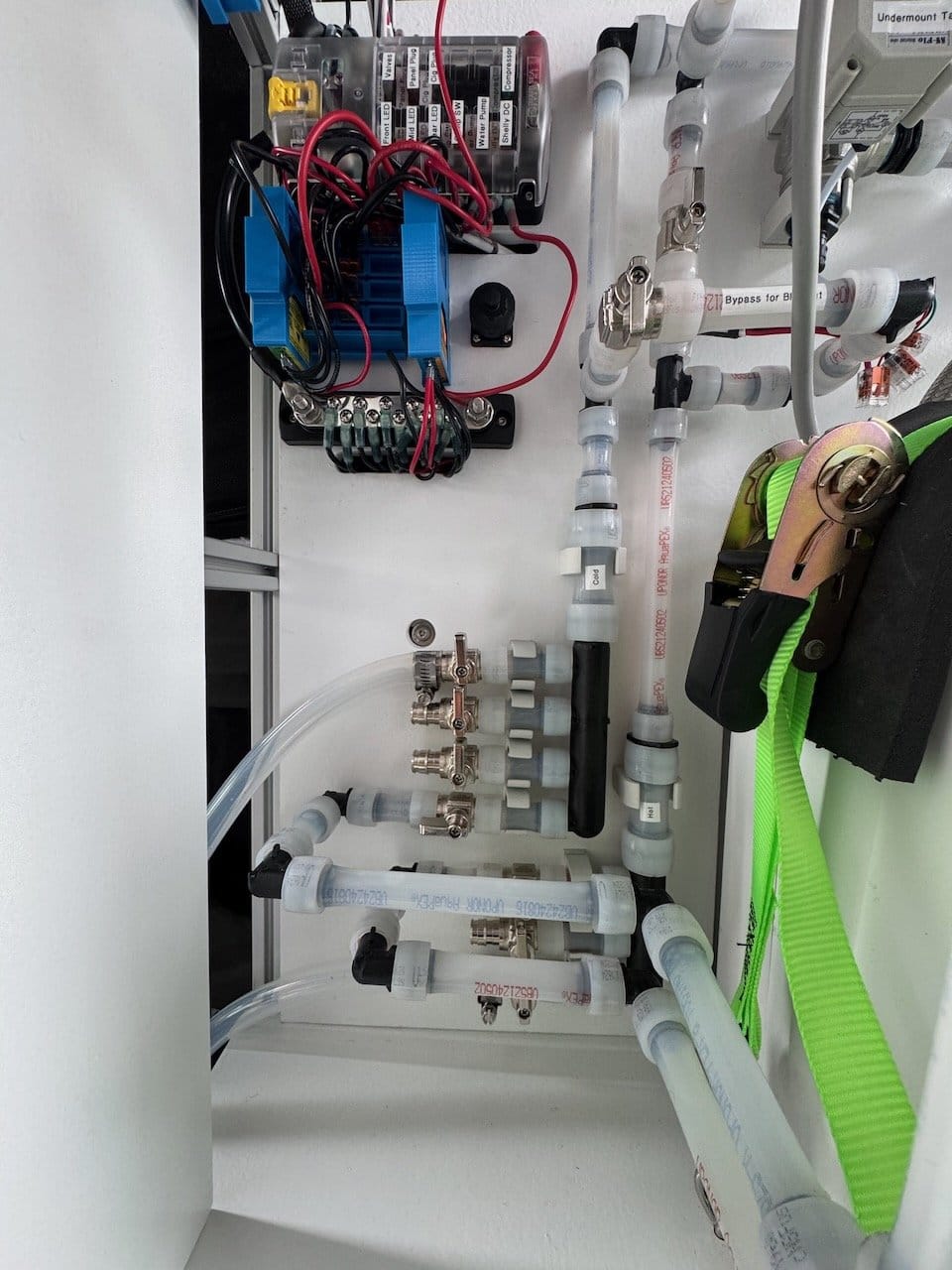

Every water line in the van past the 'supply side' has a cut off valve. We can isolate a fixture or line if it starts leaking mid-trip and still use the rest of the water system.

The water system took way more space than I had hoped, but it is working well so far. The kitchen galley plumbing is soon and you'll see more details on where those lines go then.
